This action
is designed for competition shooters using .22 centerfire and
6mm centerfire. It is an ideal action for calibers
like PPC, BR, Dasher, etc. Port opening is purposely made
small to aid in stiffness. Cartridges with OAL exceeding
2.800 inches in length cannot be ejected through the port and
can only be removed by operating the bolt release and retracting
bolt.
FEATURES:
The LV40 action is similar
to the Remington short style, except it is
.200" longer and .060" larger in diameter.
The extra length allows a longer barrel tenon, which
increases barrel support and rigidity.
Please note that the Haverkamp Precision
action does not use the detachable
recoil lug sandwiched between the action and barrel.

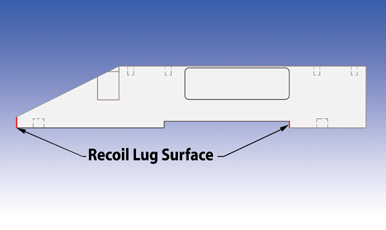

See the illustration for the integral recoil lug locations.

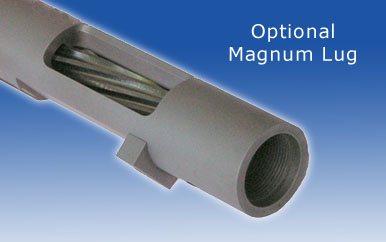

We also off a magnum recoil lug (optional for larger calibers) see photo.
The tenon thread is 1 1/16” –
18 TPI.

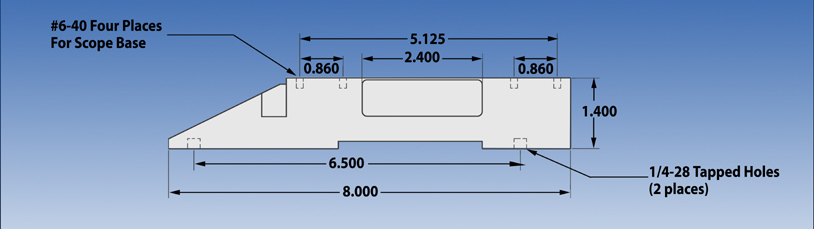

The port opening is 2.400" long.
Weight of the action with trigger hanger
is 34 ounces.
The receiver bottom is solid
(no magazine cutout) and has a flat milled section
for added bedding support.
A detachable aluminum trigger
hanger allows for rapid removal of the trigger
for adjusting without removing the barreled action
from the stock. (Drop out trigger) uses
any Remington style trigger: Jewell, Timney, Basics, etc.
Standard price includes deep
machined helical fluting of the bolt.
The standard clearance between the
bolt and the receiver bore is .0015" to .002".
If the action is going to be used for a hunting application,
you may want the clearance increased to .004"
to .005". This will be done upon request at NO
additional charge.
Stocks inletted for Remington short
actions will work with a Haverkamp Precision action
with some modification. The actions can be glued in
or pillar bedded. Pillar bedding kits with aluminum
trigger guard will be available in the near future.
The bolt release is either of two types;
A: Standard Pull pin style (strong, made from 4340 alloy steel)

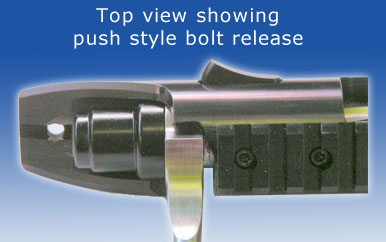

B: Optional Push style, stylish (additional cost)
